Cat 8 & 8.2 Cabling System

For 25 and 40 Gig Data Center Applications

Siemon’s end-to-end TERA® Category 8.2 copper cabling system was founded on our Siemon TERA connector that was originally chosen as the ISO/IEC 11801 interface for category 7A/Class FA and easily achieved new Category 8.2 compliance. The TERA connector when combined with Siemon’s category 8.2 S/FTP 2000 MHz cable and patch cords delivers a complete end-to-end system that exceeds ISO/IEC category 8.2/Class II specifications for 2-connector, 30-meter Class II channels for 25 and 40 Gig switch-to-server applications in the data center.

The TERA Category 8.2 system supports autonegotiation and is backwards compatible to support copper-based Ethernet applications from 1 to 40 Gig in a variety of configurations. The system provides enhanced internal and alien crosstalk and insertion loss performance over Category 8/8.1 RJ45-based systems

Innovative TERA Outlet

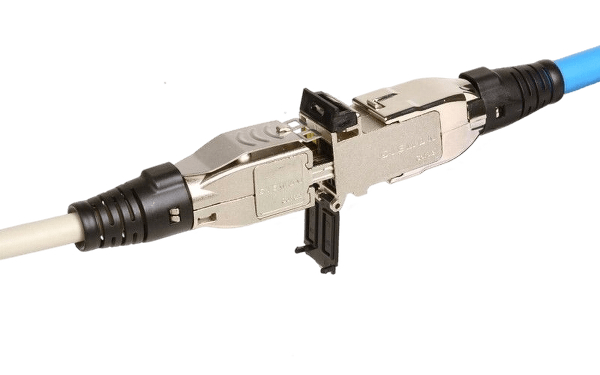

Originally designed as the interface for category 7A/class FA that has long been ahead of its time as the highest-performing twisted-pair copper cabling system available, Siemon’s innovative TERA outlet has been newly characterized to support Category 8.2.

When installed as part of a TERA 8.2 solution, these outlets and plugs deliver transmission performance up to 2 GHz to support two-connector, 30-meter channels in high-speed 25 Gigabit (25GBASE-T) and 40 Gigabit (40GBASE-T) data center applications

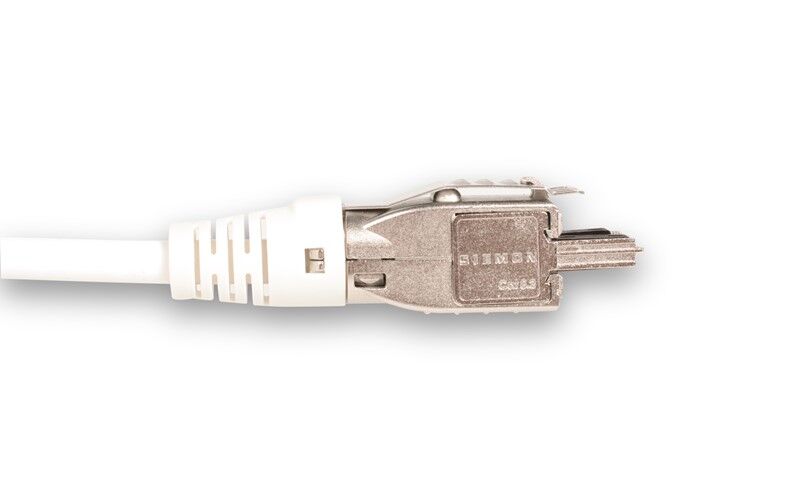

The TERA outlets are easily installed in Siemon’s TERA-MAX® patch panels, while the plugs can be used to terminate 22 to 23 AWG solid or stranded S/FTP and F/FTP shielded cables into exact lengths.
Slim, compact design with hinged outlet door to prevent dust and other contaminates from entering unused outlets and a simple termination process that ensures proper termination of the shield with no additional grounding processes required

Patch Cords Options for Any Data Center Architecture

Siemon’s Tera 8.2 system includes TERA-to-RJ45 patch cords for use in 2-connector switch-to-server connections in end of row (EoR) and middle of row (MoR) data center architectures. The system also includes a Category 8 compatible RJ45-to-RJ45 patch cord for direct attach server connections in a top of rack (ToR) deployment.

Constructed of Category 8.2 S/FTP 2000 MHz cable, TERA Category 8.2 patch cords are backwards compatible with Category 7A/Class FA and lower cabling systems
TERA-to-RJ45 and RJ45-to-RJ45 patch cords allow the TERA Category 8.2 system to be easily connected to RJ45-equipped active electronics in MoR, EoR and ToR data center deployments
Removable color clips available in 9 colors allow field color coding to distinguish applications

Tech Brief: Support of 10BASE-T1L with TERA® SPE Cabling

Learn how Siemon’s standards-based TERA solution with non-proprietary category-style cabling and innovative TERA components are ready to support 10BASE-T1L for building control, industrial and other OT network connections up to 10 Mb/s, while also providing a common networking platform for all 1-, 2- and 4-pair IoT and IIoT Ethernet devices in the enterprise space.

Category 8.2 E20 Cable

Siemon’s Category 8.2 cable exceeds the transmission performance requirements of IEC 61156-9 up to 2000 MHz to support 30-meter Class II channels in IEEE 802.3bq 25 Gb/s (25GBASE-T) and 40 Gb/s (40GBASE-T) applications in the data center.

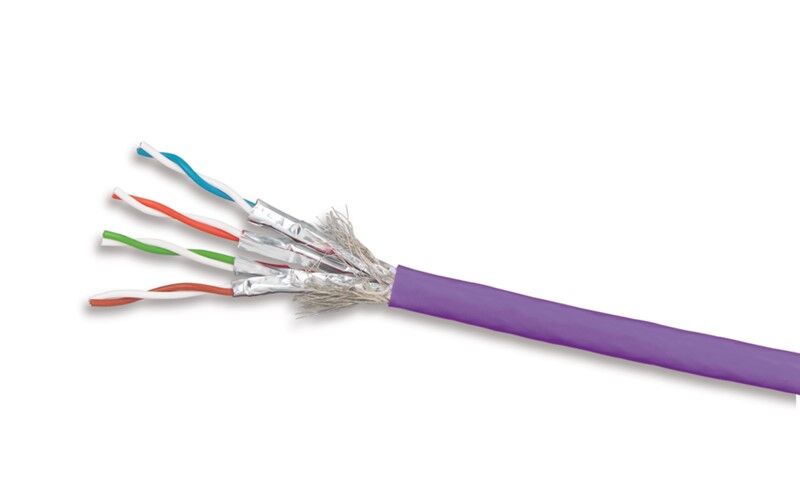

Fully shielded S/FTP cable features individual foils around each pair and a high screen coverage outer braid to provide superior noise immunity and coupling attenuation performance
Qualified for mechanical reliability in high temperature environments up to 75°C
Available in CMR and LS0H (IEC 60332-3-22) ratings

Preterminated Trunking Assemblies for Fast Deployment

TERA 8.2 pre-terminated trunking cable assemblies provide an easily installed and cost effective alternative to individual field-terminated channels with pre-terminated outlets that snap easily into TERA-MAX patch panels.

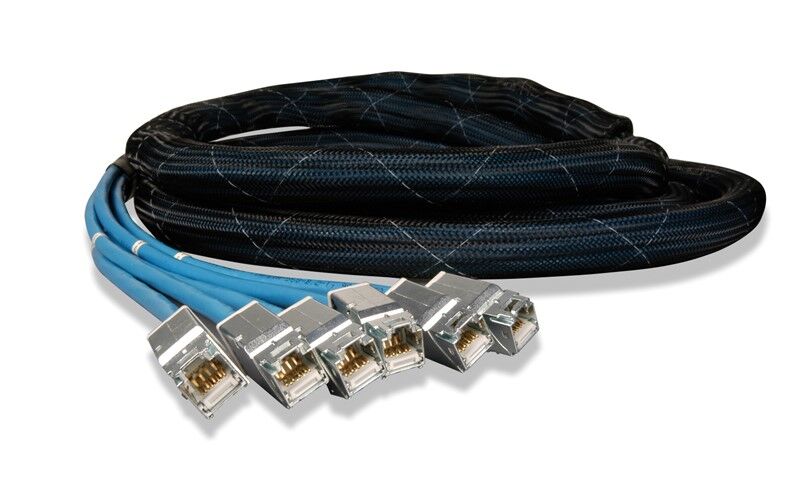

Combines factory terminated and tested TERA 8.2 outlets with Siemon Category 8.2 cable in a high-performance modular cable assembly
Each assembly is coded with a unique identification number with each leg designated for proper orientation
Features six-leg, doubled-ended design with a high-strength closed mesh sheath for snag-free pulling

TERA® Category 8.2 Outlets

When installed as part of a TERA 8.2 solution, these outlets deliver transmission performance up to 2 GHz to support two-connector, 30-meter channels in high-speed 25 Gigabit (25GBASE-T) and 40 Gigabit (40GBASE-T) applications for switch-to-server connections in the data center.

TERA-MAX Patch Panels

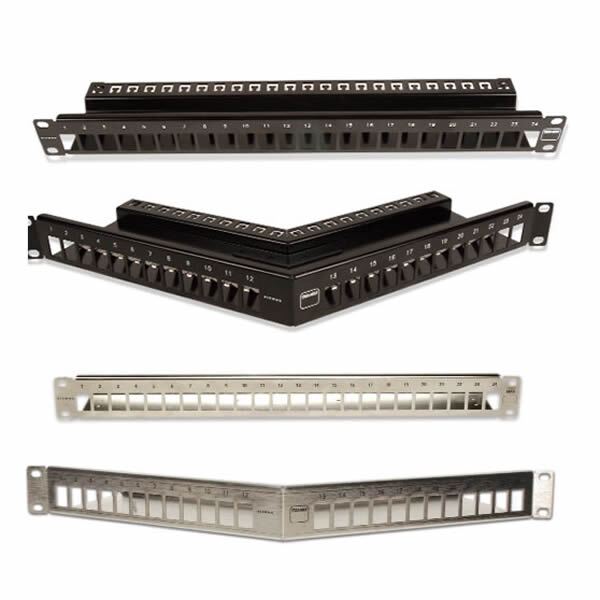

The TERA-MAX 19 inch patch panels offer high-density modular solution. They can be configured with any combination of TERA or hybrid shielded Z-MAX™ modules.

Category 8.2 Shielded Cable

Siemon’s Category 8.2 cable exceeds the transmission performance requirements of IEC 61156-9 up to 2000 MHz. This fully shielded cable supports 30-meter Class II channels to meet IEEE 802.3bq 25 Gb/s (25GBASE-T) and 40 Gb/s (40GBASE-T) applications in the data center.
